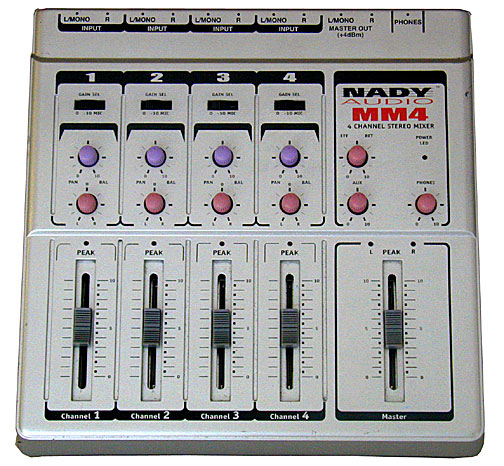

MM4

4 channel stereo mini-mixer
This versatile compact mixer offers rugged reliability, ultra-portability and top performance and is perfect for many small home and studio applications, including use with PCs.

  • Superior low noise and transparent audio

  • 8 inputs (1/4" phone)

  • Stereo balanced outputs (1/4" TRS jacks)

  • Gain select switch on all channels to accommodate all types of input levels from any source: mics, cassette and CD players, instruments, keyboards, PC's, etc.

  • Two MM4's can easily be cascaded for increased channel capacity

  • Independent headphone output with dedicated volume control

  • L/R Aux in, Stereo Effects Send/Return, Stereo Effects sub in jacks (especially useful for cascading)

  • Channel L/R pan and Effects controls

  • Master fader and effects return and aux level controls

  • All rotary controls have center detents

  • Channel and Master L/R peak LED indicators

  • Dimensions & Weight: 8.6" x 8.6" x 2.4" (218 x 218 x 61 mm), 2.1 lbs (950 Kg)



LINKS

• Owners Manual MM4 (PDF)

• Literature (PDF)

• Image MM4 (JPG)

• Specifications MM4 (PDF)
