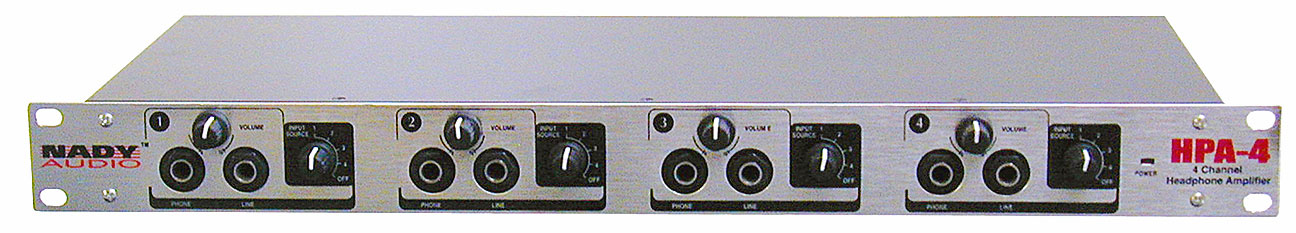

Four
totally independent stereo high-power headphone amplifier/line distribution
channels in a convenient single rack package — an ingenious,
easy-to-operate unit allowing a maximum variety of both useful monitoring
and stereo line level signal distribution options.
-
Input
Source Select switches and Phone and Line 1/4" TRS stereo outputs
on each channel, and 4 independent stereo input sections (each with
servo-balanced L & R 1/4"TRS jacks) enable independent selection
of any of the 4 stereo signals for each headphone amp/line distribution
channel. This allows selecting from up to 4 completely independent
monitor signals for each set of headphones connected to the HPA-4
for optimum monitor-ing flexibility or 4 separate choices for each
channel's Line Output for enabling many useful, simple audio switching/routing
solutions.
-
Separate
Volume control for each channel adjusts the level to both Phone
and parallel Line outputs
|
-
Easily
expandable for optimum versatility in any application — up to
four HPA-4's can be daisy chained for additional fully selectable
headphone/line distribution requirements
-
No-compromise
circuit design, strin-gently selected tight-tolerance components and
low-noise, extremely linear or amps for ref-erence-quality, transparent
audio with maximum headroom even at extremely high head-phone volume
levels
-
High-quality,
rugged construction for maximum reliability
-
Shielded
internal dual regulated power supply with ~115V(60Hz)/~230V(50Hz)
select switch and fused IEC power cord connector
-
Dimensions
and weight: 1.75"X 19"X 8.5"(44.5X482.6X217mm), 6.93lbs (3.15Kg)
|
|
|
