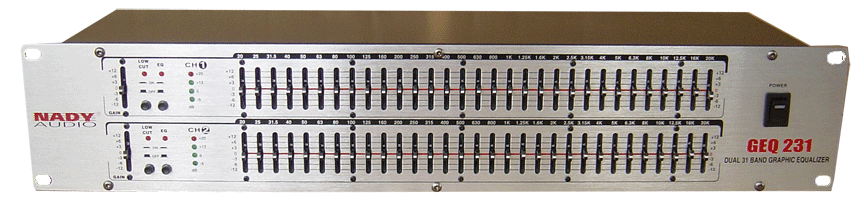

• GEQ 231: 2 Channel, Double Rack Space,31—1/3rd Octave
Bands Each Channel

• Active balanced (XLR and 1/4"TRS) input/output connectors

• Constant Q bandwidth from each filter with 3% center frequency accuracy

•Parallel filter design for minimal phase distortion

• Ultra low--noise circuitry

•Low--cut filter at 40Hz, 12dB/octave, switchable, with status LED

• Band range: +/- 12dB gain

• Center detents on faders

• Variable input level control (+/-12dB)

• Equalizer ON/OFF bypass switch with status LED

• Gain status LED bargraph with peak LED

• Power switch with integral LED “ON” indicator

• Shielded internal power supply with AC input and selectable line voltage (~115V/60Hz or ~230V/50Hz)

• Compact and durable all-steel chassis design
