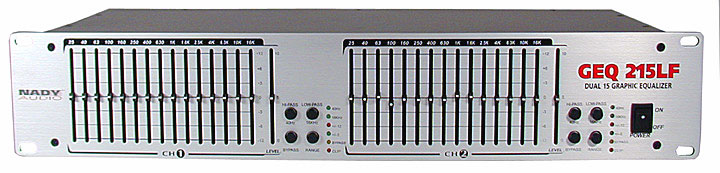

GEQ-215LF
With compact and durable all-steel-chassis design, the GEQ Series provides optimum audio control for all live and recording applications, plus ultimate operating convenience and maximum reliability.

  • 2 channel, double rack space (2U), 15-2/3 octave bands each channel, with 2/3 octave ISO spacing from 25Hz to 16KHz.

  • Active balanced (XLR and 1/4" TRS) and unbalanced (RCA) input/output connectors

  • Constant Q bandwidth from each filter with 3% center frequency accuracy

  • Parallel filter design for minimal phase distortion

  • Ultra low-noise circuitry

  • High-cut filter at 16Hz, 12dB/octave, switchable

  • Low-cut filter at 40Hz, 12dB/octave, switchable

  • Selectable range, 6dB or 12dB gain

  • Center detents on faders

  • Variable input level control

  • Power off automatic bypass function

  • Equalizer ON/OFF bypass switch

  • Peak (overload threshold) LED

  • Shielded internal power supply with AC input and selectable line voltage (~115V/60Hz or ~230V/50Hz)

  • Ground lift switch
