Full frequency response, wide dynamic range and ultra low noise assures natural, transparent sound with maximum headroom
8 mono balanced (XLR and 1/4" TRS) and 8 balanced stereo (1/4" TRS) inputs (16 total)
L-R Main Mix and G1-2 Group Submix buses, with L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes with separate master faders
2 Aux Sends and 2 stereo Aux Returns with Aux Send and Aux Return controls
8 mono input channel Inserts allow independent connection of effects devices for each mono channel
Tape In and Record Out RCA jacks with Tape Input Level control
Separate Master Mix, Control Room and Headphone Outputs
PFL, L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes and headphone and control room outputs for versatile monitoring capability
Input Trim controls on all channel inputs
Balanced 1/4" TRS and XLR Stereo Outputs
3-band EQ on all channel

Full frequency response, wide dynamic range and ultra low noise assures natural, transparent sound with maximum headroom

8 mono balanced (XLR and 1/4" TRS) and 8 balanced stereo (1/4" TRS) inputs (16 total)

L-R Main Mix and G1-2 Group Submix buses, with L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes with separate master faders

2 Aux Sends and 2 stereo Aux Returns with Aux Send and Aux Return controls

8 mono input channel Inserts allow independent connection of effects devices for each mono channel

Tape In and Record Out RCA jacks with Tape Input Level control

Separate Master Mix, Control Room and Headphone Outputs

PFL, L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes and headphone and control room outputs for versatile monitoring capability

Input Trim controls on all channel inputs

Balanced 1/4" TRS and XLR Stereo Outputs

3-band EQ on all channel

Tape In and Record Out RCA jacks with Tape inputs assignable to Master Mix or stereo Control Room/Headphone outputs

Switchable +48V phantom power on all mono inputs

Pan pots on each mono channel and Balance pots on each stereo input

60 mm faders on all channels and master L/R and G1-2 bus mix for precise level control

High-quality sealed pots with center detents for all Pan/Balance and EQ controls

Peak LEDs on all input channels

Super accurate 10-segment LED display bargraph meters switchable to display L/R or G1/G2 mix levels

High strength steel casing and superior construction with only highest quality components for longest life and maximum reliability. Rack ears for rackmounting supplied.

External AC supply (PSU) for optimum signal integrity and superior transient response

Dimensions & Weight: 15"x17.5"x 3.75" (381 x 495 x 95 mm), 14.85 lbs (6.75 Kg)

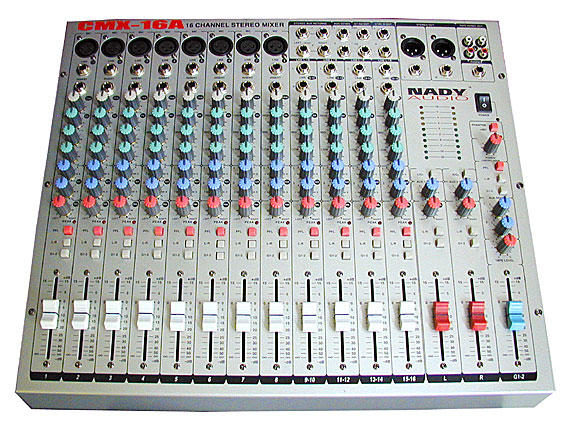

CMX-16A
16 Channel stereo mic/line mixer
Offering up to 20 channels (including aux returns) plus 2 RCA tape inputs, this compact console and rackmountable mixer delivers top performance, full-functioned flexibility, and ultimate value, and meets the requirements of even the most demanding mixing applications.

Full frequency response, wide dynamic range and ultra low noise assures natural, transparent sound with maximum headroom 8 mono balanced (XLR and 1/4" TRS) and 8 balanced stereo (1/4" TRS) inputs (16 total) L-R Main Mix and G1-2 Group Submix buses, with L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes with separate master faders 2 Aux Sends and 2 stereo Aux Returns with Aux Send and Aux Return controls 8 mono input channel Inserts allow independent connection of effects devices for each mono channel Tape In and Record Out RCA jacks with Tape Input Level control Separate Master Mix, Control Room and Headphone Outputs PFL, L-R, and G1-2 functions selectable on all channels and separately assignable to master mixes and headphone and control room outputs for versatile monitoring capability Input Trim controls on all channel inputs Balanced 1/4" TRS and XLR Stereo Outputs 3-band EQ on all channel	Tape In and Record Out RCA jacks with Tape inputs assignable to Master Mix or stereo Control Room/Headphone outputs Switchable +48V phantom power on all mono inputs Pan pots on each mono channel and Balance pots on each stereo input 60 mm faders on all channels and master L/R and G1-2 bus mix for precise level control High-quality sealed pots with center detents for all Pan/Balance and EQ controls Peak LEDs on all input channels Super accurate 10-segment LED display bargraph meters switchable to display L/R or G1/G2 mix levels High strength steel casing and superior construction with only highest quality components for longest life and maximum reliability. Rack ears for rackmounting supplied. External AC supply (PSU) for optimum signal integrity and superior transient response Dimensions & Weight: 15"x17.5"x 3.75" (381 x 495 x 95 mm), 14.85 lbs (6.75 Kg)			LINKS • Owners Manual CMX-16A (PDF) • Literature (PDF) • Image CMX-16A (JPG) • Specifications CMX-16A (PDF)
