XR Series

Designed for all professional applications, the XR Pro Series offer unsurpassed RF and audio, enhanced full-featured operation and rackmount convenience. With a choice of the single receiver XR-61, dual receiver XR-62, these systems deliver high-end performance at amazingly cost effective prices.

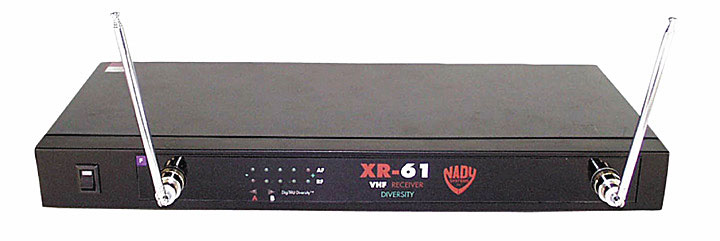

XR-61

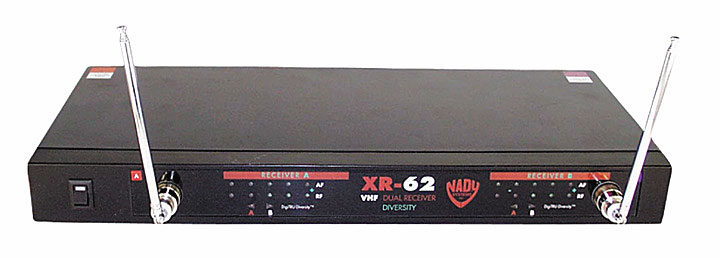

XR-62

  • 120dB Dynamic Range – the quietest wireless (with the most headroom) at any price

  • Up to 250 ft. operating range (depending on site conditions); up to 500 ft. optimum line-of-sight

  • Single (XR-61) or dual (XR-62) VHF diversity receivers in single rack space housing

  • Convenient front–mounted dual antenna jacks for either onboard or remote antennas

  • DigiTRU Diversity™ with proprietary digital processing circuitry for maximum dropout protection and range

  • Front panel Power ON/OFF switch and Power, A/B Diversity, and 5 segment AF and RF signal LED displays

  • Rear panel fixed MIC level balanced XLR and 1/4" adjustable line level outputs for maximum versatility, mute adjust control, and easy access volume control

  • Noise-free transmitter ON/OFF operation

  • Choice of WLT-15, WGT-15, WHT-15, or Link 2™ transmitter: Any single transmitter for the XR-61; any combination of 2 transmitters for the XR-62



LINKS

• Owners Manual XR-61 (PDF)
• Owners Namual XR-62 (PDF)

 • Literature (PDF)

• Image XR-61 (JPG)
• Image XR-62 (JPG)

• Specifications XR-61 (PDF)
• Specifications XR-62 (PDF)
