THS Series Speakers

THS-1512 or
THS-1515

THS-2012 or
THS-2015
Ideal for all small to mid-size venue applications, the THS Series speakers offer amazing high-end performance in rugged, easy-to-transport enclosures that sound and look great. These speakers are perfect for all total front-of-house (FOH) live sound reinforcement applications (indoors or outdoors): clubs, small to medium halls, churches, schools and large rehearsal rooms.

  • Durable, roadworthy cabinet construction with Tolex covering, reinforced corners, and large built-in recessed carrying handles

  • Wide-angle, short-throw high-frequency dispersion horns provide clean, accurate treble for optimum clarity

  • Convenient Speakon™ and 1/4" (6.3mm) connectors for professional hook-ups

  • Frequency response:
    THS-1512 (75Hz-21KHz),
    THS-I515 (65Hz-21KHz),
    THS-2012 (40Hz-20KHz),
    THS-2015 (35Hz-20KHz)

  • Sensitivity (1W/1M): THS-1512 (102dB), THS-1515 (103dB), THS-2012 (101dB), THS-2015 (102.5dB)

  • Dimensions (WHD):
    THS-1512 (26"x15"x17.3", 66 x 38.1 x 43.9 cm);
    THS-1515 (29.5"x17.3"x19.7", 74.9 x 43.9 x 50 cm);
    THS-2012 (17.6" X 15.2" X 39.8" (44.7 X 38.5 X 101 cm);
    THS-2015 20.3"x15.9"x 46" (51.5 x 40.5 x 117cm)

  • Weight:
    THS-1512 (55 lbs, 25 Kg),
    THS-1515 (67 lbs, 30.4 Kg),
    THS-2012 (67 lbs, 30.4Kg),
    THS-2015 (90.1lbs, 40.9Kg)

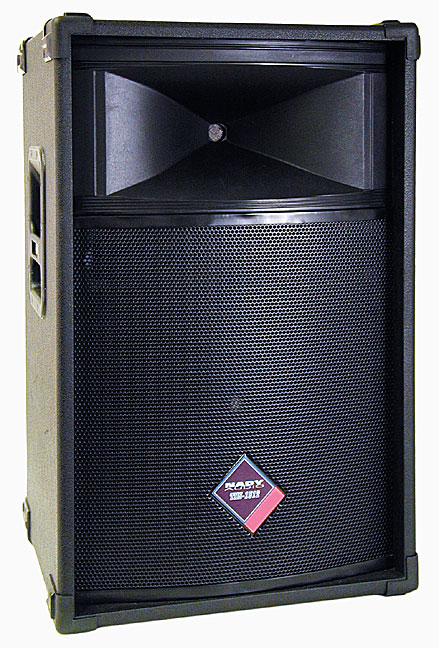

  • THS-1512 — Full-range,
    2-way speaker with 12" woofer, conical 6" X 15" titanium horn and 320W peak program power rating

  • THS-1515 — Full-range,
    2-way speaker with 15" woofer, conical 6" X 15" titanium horn and 600W peak program power rating

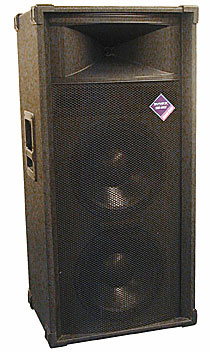

  • THS-2012 — Full-range,
    2-way speaker with two 12" woofer, conical 10" X 18" titanium horn and 750W peak program power rating

  • THS-2015 — Full-range,
    2-way speaker with two 15" woofer, conical 10" X 18" titanium horn and 900W peak program power rating



LINKS

• Technical Data THS-1512 (PDF)
• Technical Data THS-1515 (PDF)
• Technical Data THS-2012 (PDF)
• Technical Data THS-2015 (PDF)

• Literature (PDF)

• Image THS-1512 (JPG)
• Image THS-1515 (JPG)
• Image THS-2012 (JPG)
• Image THS-2015 (JPG)
