SRA Series Professional Power Amplifiers
(SRA 2150 & SRA 2250)
Compact, full-featured and versatile, the SRA Series provides studio quality audio for project recording and live applications.

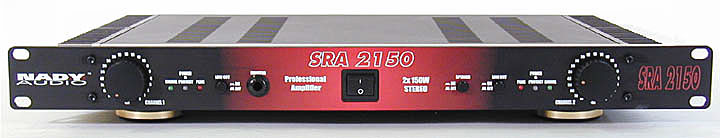

SRA 2150

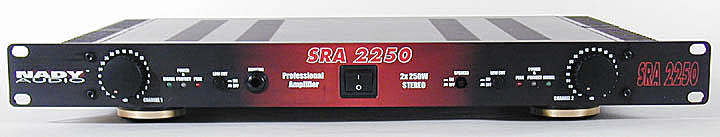

SRA 2250

  • Convection cooled with no fan for quietest operation

  • Full convenience features: calibrated 41 detent volume controls, headphone output with speaker-disable switch for private monitoring, switchable Low Cut filters for eliminating speaker rumble and resonance, switchable 2/4/8 ohm operation, and stereo/mono-bridged switch

  • 1/4" TRS and XLR balanced and RCA unbalanced inputs, 1/4" and binding post (banana jack) speaker outputs

  • ~115V (60Hz)/~230V (50Hz) AC select switch

  • Complete, advanced safety and reliability features: soft-start turn on; noise-free on/off; built-in DC offset, short circuit, and speaker protection; built-in current and signal voltage limiters.

  • Peak, Power/Protection, and Signal LEDs for each channel

  • Rugged single rack space (1U) steel housing

  • SRA 2150 — 2 X 150W @ 4 Ohms 250W mono bridged @ 8 Ohms

  • SRA 2250 — 2 X 250W @ 4 Ohms 350W mono bridged @ 8 Ohms



LINKS

• Owners Manual SRA Series (PDF)

• Literature (PDF)

• Image SRA 2150 (JPG)
• Image SRA 2250 (JPG)

• Specifications SRA Series (PDF)
