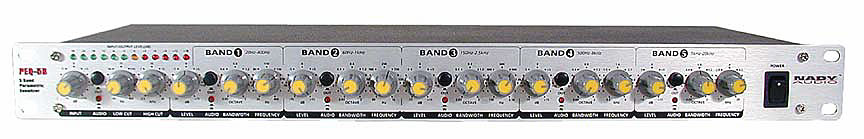

PEQ-5B
With its advanced state-of-the-art features and versatile utility, the PEQ-5B five-band parametric equalizer is a rugged workhorse, designed for long-haul reliability in the studio and live sound reinforcement applications.
  • Full professional features include: 15dB boost/cut per band, constant-Q, state-variable filter circuitry for precision control of tone coloration, parallel phase filters for minimal phase shifting, and tunable high and low cut filters.

  • Each band is independently switchable and adjustable in bandwidth (.03 to 2 octaves wide), allowing a range of adjustment from tight notching to extreme boost/attenuation by band overlapping

  • Servo-balanced XLR and 1/4" TRS inputs and outputs

  • Bypass switches on each channel

  • 12-segment LED switchable Input/Output meter

  • Housed in a single rackmount metal housing (1U)



LINKS

Owners Manual PEQ-5B (PDF)

Literature (PDF)


Image PEQ-5B (JPG)


Specifications PEQ-5B (PDF)
