MPM 480 & 880
The rugged MPM 480/880 are both useful audio tools ideal for many live sound reinforcement applications. Both units include a mixer, equalizer, digital effects unit and power amp — all lightweight, compact, portable and simple-to-operate. Except for number of input channels, both models share common features and performance.

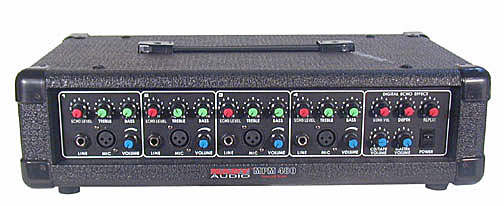

MPM 480

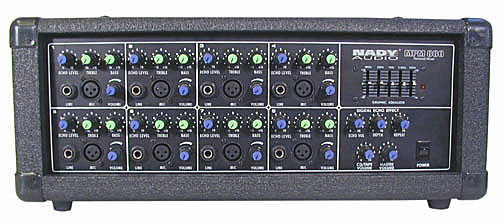

MPM 880

  • MPM 480: 4 mono inputs, both balanced XLR MIC IN (with +15 V phantom power) and 1/4" unbalanced LINE IN

  • MPM 880: 8 mono inputs, both balanced XLR MIC IN (with +15 phantom power) and 1/4" unbalanced LINE IN

  • Rear panel CD/TAPE RCA jacks for additional 5th music source (stereo) input with separate volume control

  • 2 speaker output jacks — 80W peak music power @ 8 Ohms each (100 W @ 4 Ohms) with separate output power amplifiers

  • Built-in digital echo/reverb

  • Volume, bass, treble, and echo level controls for each channel

  • Master section with CD/Tape volume, master volume, and digital echo/reverb volume, depth and echo repeat controls

  • Rear panel Send and Return effects loop jacks for external effects

  • Convection cooling for quietest operation

  • Voltage select switch for operation at either 115V(60Hz) or 230V(50Hz)

  • Lightweight for easy portability: MPM 480 weighs only 17.6 lbs (8 Kg), MPM 880 only 24.05 lbs (10.93 Kg)





LINKS

• Owners Manual MPM 480 (PDF)
• Owners Manual MPM 880 (PDF)

• Literature (PDF)

• Image MPM 480 (JPG)
• Image MPM 880 (JPG)

• Specifications MPM 480 (PDF)
• Specifications MPM 880 (PDF)
