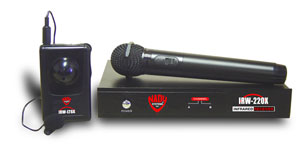

IRW-220X
Dual IR wireless microphone system

IRW-220X DUAL IR WIRELESS MICROPHONE RECEIVER



LINKS

Manual (PDF)


Image IRW-220X (JPG)


  • Dual receiver allows 2 channel simultaneous operation of 2 transmitters (Ch A, Ch B)
  • IR signal reception LED indicators
  • Channel A/B mix audio output RCA phono jack
  • Separate Channel A and Channel B volume controls
  • 2 IR Sensor coaxial inputs
  • 2 IR Sensors supplied, with 20 ft. and 35 ft. connecting cables and wall mounts; each sensor with a Multiple Array of Wide-Angle Infrared Sensitive LEDs

IRW-HT6X HANDHELD MICROPHONE TRANSMITTER

  • Multiple emitter array of high efficiency infrared emission LEDs for optimum IR transmission
  • Power On LED
  • Powerful uni-directional dynamic cartridge for optimum audio, minimal handling noise, and maximum feedback rejection; rugged steel mesh ballscreen with anti-roll ring
  • Operates up to 5 hours on 2 alkaline AA batteries or NiMH rechargeable batteries

IRW-LT6X BODY-PACK TRANSMITTER
  • Multiple emitter array of high efficiency infrared emission LEDs for optimum IR transmission
  • Power ON LED
  • Channel A/B selector switch
  • 3.5mm mini-jack for connection of lapel microphone
  • Audio input volume control
  • Belt Clip and neck worn lanyard
  • Operates up to 5 hours on 2 alkaline AA batteries or 2 NiMH AA rechargeable batteries
