IRW Series Infrared Wireless Microphone Systems

Featuring revolutionary new state-of-the-art invisible infrared (IR) light transmission technology, the IRW Series wireless microphone systems are perfect for conference/meeting rooms, classrooms, churches, health clubs, small auditoriums, and other medium-sized venues, as well as for consumer use such as home karaoke. The IRW Series offers 3 receiver options: the IRW-215 single channel, the IRW-220 dual channel for use with two transmitters simultaneously and the IRW-1PA single channel portable wireless PA with built-in IR receiver, 12 Watt amplifier and speaker. An ideal alternative to radio (RF) wireless mics for situations in which RF congestion or privacy issues are a concern, the IRW Series systems offer high-quality audio and solid reception suitable for all speaking and most recreational singing applications.

IRW-215 and IRW-220 receiver outputs easily connect to any mixer or amplifier system
Completely self-contained IRW-1PA portable P.A. with built-in amplifier, speaker, and wireless microphone system is designed for high performance and ease of use, with simple set-up and operation
All 3 systems available with a choice of the IRW-LT6 bodypack transmitter (for use with lapel or headset microphones) or the IRW-HT6 handheld microphone transmitter.
Designed for indoor use only, even in well lighted areas
IR wonÕt transmit through walls, so any number of IRW Series systems can be used in the same building (such as schools) without the interference often encountered in multiple RF (VHF and/or UHF) wireless mic set-ups. The IRW Series is also perfect for secure, in-room-only transmissions for privacy, which is not possible with RF wireless systems which penetrate outside rooms.

For short-range (~40 ft/12m) line-of-sight transmissions in one room only with built-in IR wide-angle sensor arrays in the receivers. The range can be extended in any direction for 40 feet (12 m) more with optional wall or ceiling mount remote IRW-1S sensor which connects to the receiver.

IRW-215
IR Wireless Microphone Receiver

Single channel infrared operation High sensitivity, with built-in multiple wide-angle IR LED sensor arrays Power ON and Received Signal LED indicators	1/4" Audio Output jack with Mic/Line Output Level switch Remote IR sensor input 12VDC AC/DC adapter supplied
*LINKS* • Literature (PDF) • Larger Photo (JPG)

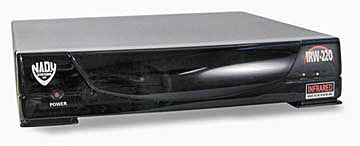

IRW-220
Dual IR Wireless Microphone Receiver

Dual Receiver infrared operation (Ch A, Ch B) High sensitivity, with built-in multiple wide-angle IR LED sensor arrays Power ON and Channel A & B Received Signal LED indicators	Ch A & B 1/4" jack outputs with Mic/Line Output Level switch 2 remote sensor inputs 12VDC AC/DC adapter supplied
*LINKS* • Literature (PDF) • Larger Photo (JPG)

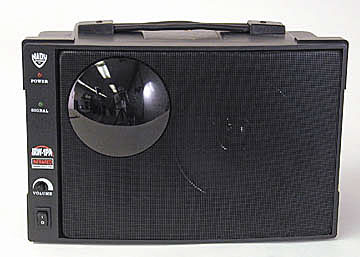

IRW-1PA
Portable P.A. and IR Wireless Microphone Receiver

Built-in 12 W (peak) audio amplifier and speaker Single channel receiver infrared operation High IR reception sensitivity, with built-in multiple wide-angle IR LED sensor arrays	Remote IR sensor input Power ON and Received Signal LED indicators Power ON switch and Volume control AC powered
*LINKS* • Literature (PDF) • Larger Photo (JPG)

INDIVIDUAL TRANSMITTERS

IRW-LT6
Bodypack Transmitter for Lavalier
or Headset Microphone

Multiple emitter array of high efficiency infrared emission LEDs for optimum IR transmission
Two-color Power ON/Low Battery LED changes color to indicate low batteries
Locking 3.5mm mini-jack for secure connection
Input audio level control
Operates up to 6 hours on 2 alkaline AA batteries or up to 10 hours on 2 NiMH AA rechargeable batteries

IRW-HT6
Handheld Microphone Transmitter

Multiple emitter array of high efficiency infrared emission LEDs for optimum IR transmission
Two-color Power ON/Low Battery LED changes color to indicate low batteries
Powerful neodymium unidirectional dynamic cartridge for optimum audio, minimal handling noise and maximum feedback rejection. Rugged steel mesh ballscreen with anti-roll ring
Operates up to 6 hours on 2 alkaline AA batteries or up to 10 hours on 2 NiMH AA rechargeable batteries
